RPD-65 Series

Motor based machinery
Test equipment
POS systems
Franking machines
RPD-65 Series Features
Universal AC input/ Full range
12V or 24V high peak output current capability
Optional L-Bracket and cover
Short circuit/over load/over voltage protection
100% full load burn-in test
Fixed switching frequency at 65KHz
Part Number Voltage Current (amps) Power (watts)
RPD-65C 12V 4.5A 65W
5V 1.2A
RPD-65D 24V 2.25A 65W
5V 1.2A

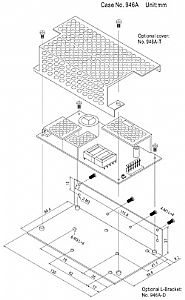

RPD-65 Series diagram RPD-65 Series diagram 2 RPD-65 Series diagram 3
RPD-65 Series diagram 4

RPD-65 series are dual output switching power supplies that can provide 60-66W of convection cooled power. With 5″ x 3″ x 1.15″ small footprint these compact switchers are ideal for 1U installations or other space constrained applications. Possessing a 12V or 24V main output channel with high peak load capability and 5V channel for logic control usage. Accompany with the optional L-bracket and cover to provide more alternatives for system configuration if the external protective coverage is needed or the mounting space has constraints.
