Applications
LED Lighting
Moving Signs and Back Lighting
Outdoor or Harsh Environment

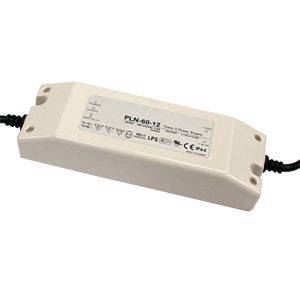

 PLN-60_300



Features
Universal AC input
Fully isolated plastic case with IP64 level
Built-in constant current limiting circuit with adjustable OCP level
Short circuit, Overload, Over voltage, Over temperature protections
Built-in active PFC function
IP64 design for indoor or outdoor installations
UL1310,Class 2 power unit
Cooling by free air convection
100% full load burn-in test
High reliability

Part Number

Voltage (max) Current (amps) Power (watts)

PLN-60-12

12V 5A

60W

PLN-60-15

15V 4A 60W
PLN-60-20 20V 3A

60W

PLN-60-24

24V 2.5A 60W

PLN-60-27

27V 2.3A

62.1W

PLN-60-36 36V 2A

61W

PLN-60-48 48V 1.3A

62.5W

Description
A 60W led lighting power supply with universal AC input and active PFC function. These limited power sources comply with UL 1310 Class II that under any situation the output power will be less than 100VA to 5A. The high IP64 level design can protect the electronic components from dust and moisture damage and making it useable for indoor and outdoor applications. Thanks to the simplified single stage PFC topology the required high power factor for the lighting industry can be achieved economically. Efficiencies are as high as 88% and hence can operate between -30°C and +70°C using only free air.
