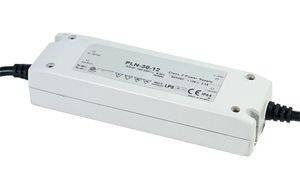

PLN-30 Series – 30W Single Output UL1310 Class 2 IP64 LED Lighting Power Supply

Applications Small scale moving signs Backlighting LED-based decorative lighting LED-based architectural lighting LED stage and theatre lighting LED electronic displays
		Features Universal AC input, full range Fully isolated plastic case IP64 design for indoor or outdoor installations UL1310 Class 2 power unit Built in constant current limiting circuit with adjustable over current protection level Short circuit, overload, over voltage and over temperature protections Built in Active PFC function Cooling by free air convection 100% full load burn-in test High reliability
Part Number	Voltage (max)		Current (amps)	Power (watts)
PLN-30-9	9V		3.3A	30W
PLN-30-12	12V		2.5A	30W
PLN-30-15	15V		2A	30W
PLN-30-20	20V		2A	30W
PLN-30-24	24V		1.25A	30W
PLN-30-27	27V		1.12A	30.24W
PLN-30-36	36V		1A	30.24W
PLN-30-48	48V		1A	30.24W

Description
These limited power sources comply with UL 1310 class 2 that under any situation the output power will remain less than 100VA or 5A. This will significantly reduce the hazardous condition exposed to the technicians who execute the construction or maintenance of the LED lighting system. The IP64 enclosure design can protect the electronic components against dust and moisture and makes them suitable for use at indoor or outdoor locations. Thanks to the simplified single stage PFC topology, the required high power factor, as well as the class C harmonic level for the lighting industry, can be achieved economically. Efficiency’s of PLN-30 series are as high as 86% and hence can operate between -30°C ~ +50°C by only free air convection inside the fully covered plastic enclosure. Standard functions include short circuit, over load, over voltage, and over temperature protections. The adjustable output voltage and current level enables the fine tuning of the PSU to comply with the requirement of LED characteristics
