| Applications LED Lighting Moving Signs and Back Lighting Outdoor or Harsh Environment |
||||
|
Features Universal Full Range AC Input IP64 design for indoor or outdoor applications Short circuit, over load, over voltage, over temperature protections UL1310 class 2 PSU with active PFC function Cooling by free air convection 100% full load burn-in test High reliability Compliance to worldwide safety regulations for lighting |
|||
|
Part Number |
Voltage (max) | Current (amps) | Power (watts) | |
|
PLN-100-12 |
12V | 5A | 60W | |
| PLN-100-15 | 15V | 5A |
75W |
|
| PLN-100-20 | 20V | 5A |
96W |
|
|
PLN-100-24 |
24V | 4A | 96W | |
| PLN-100-27 | 27V | 4A |
96W |
|
|
PLN-100-36 |
36V | 3A | 95.4W | |
| PLN-100-48 | 48V | 2A |
96W |
|
Description

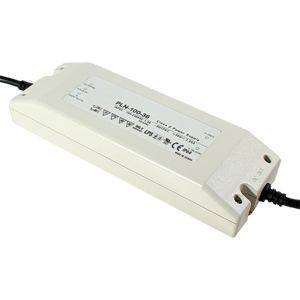

PLN-100 is a led lighting power unit with active PFC function for LED lighting applications. This limited power source complies with UL 1310 Class II and has a high IP level design at IP64, protecting the components from dust and moisture damage and making it useable for indoor and outdoor applications requiring low levels of waterproofing.
