Applications
Indoor LED lighting

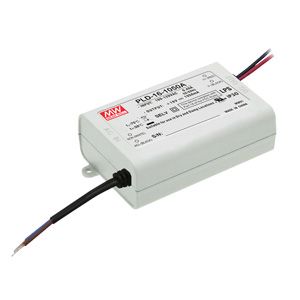

 PLD-16



Features
115VAC or 230VAC models available

Built-in active PFC function
Constant current design
Protections: Short circuit/Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit, no FG
IP30 design
100% full load burn-in test
Low cost, high reliability

Part Number Voltage (max) Current (amps) Power (watts)
PLD-16-350A 4.6V 0.35A 16.8W
PLD-16-700A 2.7V 0.7A 16.8W
PLD-16-1050A 2.2V 1.05A 16.8W
PLD-16-1400A 2V 1.4A 16.8W


Description
The PLD-16A series is a constant current LED power supply with PFC function, built to fulfil the demand of lower wattage LED indoor/decorative lighting applications. Features of the PLD-16 series are high efficiency of up to 86%, IP30 rated, Double insulated wires and 94V-0 fire prevention level. Offering 90~135 VAC input.
