Applications
Moving signs
Backlighting
LED-based decorative/architectural lighting
LED stage and theatre lighting
LED electronic displays

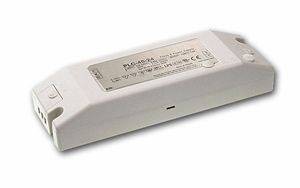

PLC-45_300

Features
Universal AC input / Full range
Fully isolated plastic case with terminal block style I/O
Built-in constant current limiting circuit
Adjustable output voltage and current level
Short circuit, over load, over voltage, over temperature protections
Built-in active PFC function, comply with EN61000-3-2 class C (>75% load)
Cooling by free air convection
100% full load burn-in test
High reliability
Suitable for LED lighting and moving sign applications
Compliance to worldwide safety regulations for lighting

Part Number Voltage (max) Current (amps) Power (watts)
PLC-45-12 12V 4A 46W
PLC-45-15 15V 3A 45W
PLC-45-20 20V 2.3A 46W
PLC-45-24 24V 2A 46W
PLC-45-27 27V 2A 46W
PLC-45-36 36V 1.25A 45W
PLC-45-48 48V 1A 46W

Description
PLC-45 Series are 45W LED Lighting Power Supplies based on earlier PLN models but with a redesign to change the terminal block style of the Input/output connections to be more flexible when wiring and the addition of two access points, with rubber stoppers, to allow the output voltage and current to be adjusted without the need to remove the covers.
