LED lighting systems




AC phase-cut dimming
Suitable for leading edge and trailing edge triac dimmers
115VAC or 230VAC models available
Built-in active PFC function
Constant current design
Protections: Short circuit/Over temperature
Cooling by free air convection
Fully isolated plastic case
Class II power unit
IP30 design
100% full load burn-in test
High reliability

Part Number Voltage (max) Current (amps) Power (watts)
PCD-25-350B 4.6V 0.35A 20.3W
PCD-25-700B 2.7V 0.7A 25.2W
PCD-25-1050B 2.2V 1.05A 25.2W
PCD-25-1400B 2V 1.4A 25.2W

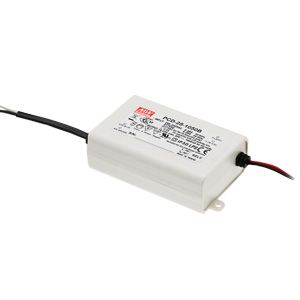

The PCD-25 series is a range of 25W single output LED lighting power supplies. Standard functions include built-in active OFC function, IP30 design, constant current design, cooling by free air convection and protections including short circuit and over temperature.
