Applications
Domestic lighting
Retail Lighting
PCC06-20W Series_300 (1)
Features
Captive terminal screws for ease of installation
Snap lock cable strain relief
Over load, short circuit and thermal protections
SELV equivalent
Safe no load operation
Class II product
RI suppression in accordance with EN55015
Part Number Voltage (max) Current (amps) Power (watts)
PCC105006 6V 1.05A 6W
PCC70006 9V 0.7A 6W
PCC50006 12V 0.5A 6W
PCC35006 18V 0.35A 6W

Description

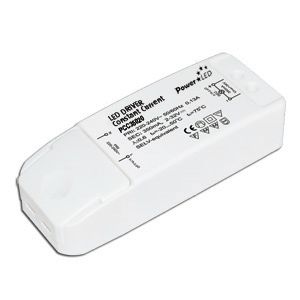

PCC6 Series are a range of 6W non IP rated constant current led drivers with quick
connect terminals, suitable for indoor LED lighting applications.
These SELV equivalent LED drivers have a 220-240Vac
input and offer output currents of 350mA to 1050mA.
