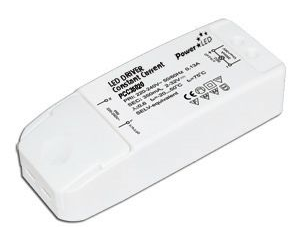

PCC20 Series – 20W Non IP Constant Current LED Drivers

Applications Domestic lighting Retail Lighting
		Features Captive terminal screws for ease of installation Snap lock cable strain relief Over load, short circuit and thermal protections SELV equivalent Safe no load operation Class II product RI suppression in accordance with EN55015
Part Number	Voltage (max)		Current (amps)	Power (watts)
PCC105020	19V		1.05A	20W
PCC70020	29V		0.7A	20W
PCC50020	40V		0.5A	20W
PCC35020	58V		0.35A	20W

Description
PCC20 Series are a range of 20W non IP rated constant current led drivers with quick connect terminals, suitable for indoor LED lighting applications. These SELV equivalent LED drivers have a 220-240Vac input and offer output currents of 350mA to 1050mA.
