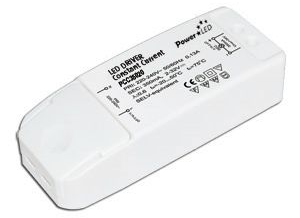

PCC12 Series – 12W Non IP Constant Current LED Drivers

Applications Domestic lighting Retail Lighting
		Features Captive terminal screws for ease of installation Snap lock cable strain relief Over load, short circuit and thermal protections SELV equivalent Safe no load operation Class II product RI suppression in accordance with EN55015
Part Number	Voltage (max)		Current (amps)	Power (watts)
PCC105012	12V		1.05A	12W
PCC70012	17V		0.7A	12W
PCC50012	24V		0.5A	12W
PCC35012	34V		0.35A	12W

Description
PCC12 Series are a range of 12W non IP rated constant current led drivers with quick connect terminals, suitable for indoor LED lighting applications. These SELV equivalent LED drivers have a 220-240Vac input and offer output currents of 350mA to 1050mA.
