| Applications Indoor LED lighting LED electronic displays Wash-wall lighting LED stage and theatre lighting LED decorative lighting |
||||
 |
Features Universal AC input / Full range (up to 305VAC) Protections; Short Circuit/ Overload/ Over voltage/ Over temperature Built-in active PFC function High efficiency up to 90% Cooling by free air convection Fully isolated plastic case Epoxy encapsulated with IP67 level Class 2 power unit Compliance to worldwide safety regulations for lighting Suitable for dry/ damp locations |
|||
|
Part Number |
Voltage (max) | Current (amps) |
Power (watts) |
|
|
LPF-60-12 |
12V | 5A |
60W |
|
|
LPF-60-15 |
15V | 4A |
60W |
|
|
LPF-60-20 |
20V | 3A | 60W | |
| LPF-60-24 | 24V | 2.5A |
60W |
|
|
LPF-60-30 |
30V | 2A | 60W | |
|
LPF-60-36 |
36V | 2A | 60.12W | |
| LPF-60-42 | 42V | 1.43A |
60.06W |
|
|
LPF-60-48 |
48V | 1.25A |
60W |
|
| LPF-60-54 | 54V | 1.12A |
60.48W |
|
Description

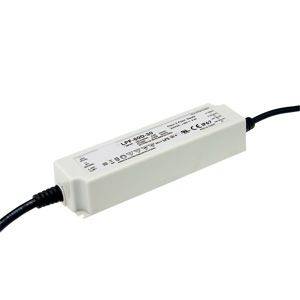

LPF-60 Series are a range of wide range 90~305Vac input LED lighting power supplies with PFC function. The power supplies are encased in a Plastic case and potted by glue to comply with IP67 ratings and allow internal shock absorption to withstand 5G vibration. Other standard functions include Class II AC input (without FG) design and protection for short circuit, overvoltage, overload and over temperature.
