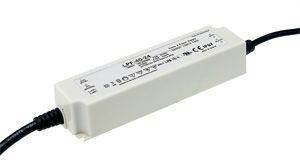

LPF-40D Series – 40W Single Output Dimmable LED Lighting Power Supply Power Supply

Applications Indoor LED lighting LED electronic displays Wash-wall lighting LED stage and theatre lighting LED decorative lighting
		Features Universal AC input / Full range Protections: Short circuit / Overload / Over voltage / Over temperature Built-in active PFC function High efficiency up to 89% Cooling by free air convection Fully isolated plastic case Epoxy encapsulated with IP67 level (Note.6) Class 2 power unit Built-in 3 in 1 dimming function (1~10Vdc or PWM signal or resister) Compliance to worldwide safety regulations for lighting Suitable for dry/damp locations
Part Number	Voltage (max)		Current (amps)	Power (watts)
LPF-40D-12	12V		3.34A	40W
LPF-40D-15	15V		3A	40W
LPF-40D-20	20V		2A	40W
LPF-40D-24	24V		2A	40W
LPF-40D-30	30V		1.34A	40.2W
LPF-40D-36	36V		1.12A	40.32W
LPF-40D-42	42V		1A	40.32W
LPF-40D-48	48V		1A	40.32W
LPF-40D-54	54V		1A	41.04W

Description
LPF-40D Series are a range of wide range 90~305Vac input LED lighting power supplies with PFC and dimming function. The power supplies are encased in a Plastic case and potted by glue to comply with IP67 ratings and allow internal shock absorption to withstand 5G vibration. Other standard functions include Class II AC input (without FG) design and protection for short circuit, over voltage, overload and over temperature.
