| Applications Moving signs Backlighting LED-based decorative lighting LED-based architectural lighting LED stage and theatre lighting LED electronic displays |
||||
|
Features Constant current mode power supply Universal AC input Epoxy encapsulated with IP67 level Withstand 300VAC surge input for 5 seconds Short circuit, over current, over voltage protections Fully isolated plastic case Cooling by free air convection UL1310 Class 2 power unit, passes LPS 100% full load burn-in test Low cost, high reliability |
|||
|
Part Number |
Voltage (max) | Current (amps) | Power (watts) | |
|
LPC-60-1750 |
34V | 2A |
60W |
|
|
LPC-60-1400 |
42V | 1.4A |
59W |
|
| LPC-60-1050 | 48V | 1.05A |
50.4W |
|
Description

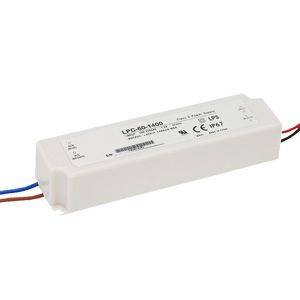

LPC-60 Series are 60W AC/DC enclosed, non PFC design, switching power supplies. LPC-60 models offer constant current mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPC-60 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPC-60 can withstand 300VAC input surge for 5 seconds.
