Applications
|
||||
|
Features Output current selectable by DIP switch 180~295 VAC input Built-in active PFC function Protections: Short circuit/Over voltage/Over temperature Cooling by free air convection Fully isolated plastic case with strain relief design Class II Power unit Built-in DALI interface or push dimming function Built-in 12V/50mA auxiliary output IP20 design Temperature compensation function by external NTC No load power consumption <1.2W Power supplies synchronization function up to 10 units |
|||
|
Part Number |
Voltage (max) | Current (amps) | Power (watts) | |
|
LCM-60DA |
90V | 0.5A | 60.3W | |
|
90V |
0.6A |
|||
|
86V |
0.7A |
|||
|
67V |
0.9A |
|||
| 57V |
1.05A |
|||
| 42V |
1.4A |
|||
Description

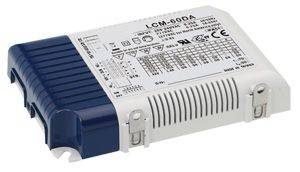

LCM-60DA is a 60W multiple-stage output current LED power supply with built-in Dali interface and push dimming function. The series have built-in active PFC function, protections including short circuit, over voltage and over temperature. Fully isolated in a plastic case with strain relief design the unit is IP20 rated and is suitable for LED lighting applications.
