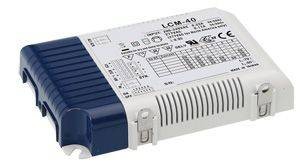

LCM-40 – 40W Constant Current LED Power Supply with PWM and 0-10Vdc Dimming

Applications LED commercial lighting Office lighting Indoor LED decorative lighting
		Features Output current selectable by DIP switch 180~295 VAC input Built-in active PFC function Short circuit, Over voltage, Over temperature protections Cooling by free air convection Fully isolated plastic case Class II Power unit, no FG Built-in 0~10VDC and PWM signal dimming function Built-in 12V/50mA auxiliary output IP20 design Temperature compensation function by external NTC No load power consumption <1W synchronization function for up to 10 units
Part Number	Voltage (max)		Current (amps)	Power (watts)
LCM-40	100V		0.35A	42W
	80V		0.5A
	67V		0.6A
	57V		0.7A
	45V		0.9A
	40V		1.05A

Description
The LCM-40 is a 40W multiple-stage output constant current LED power supply with built-in 0~10VDC and PWM signal dimming function. LCM-40 has built-in active PFC function, protections including short circuit, over voltage and over temperature, low no load power consumption and can be configured in synchronization as master and up to 9 slaves.
