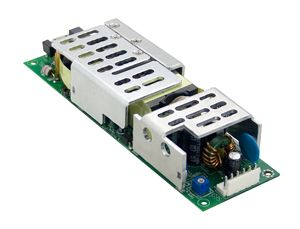

HLP-80H

Features
Universal AC input up to 305VAC
 Built-in active PFC function
 Protections: Short circuit/Over current/Over voltage/Over Temperature
Cooling by free air convection
Output constant current level adjustable
Class 2 power unit
Three in one dimming function
Compliance to worldwide safety regulations for lighting
100% full load burn-in test

Part Number Voltage (max) Current (amps) Power (watts)
HLP-80H-12 12V 5A 60W
HLP-80H-15 15V 5A 75W
HLP-80H-20 20V 4A 80W
HLP-80H-24 24V 3.4A 82W
HLP-80H-30 30V 3A 81W
HLP-80H-36 36V 2.3A 83W
HLP-80H-42 42V 2A 82W
HLP-80H-48 48V 2A 82W
HLP-80H-54 54V 2A 81W
