Applications
Suitable for LED lighting and moving sign applications

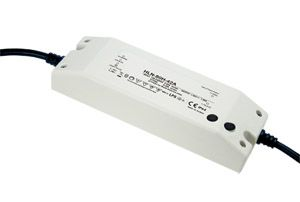

HLN- 80H Series

Features
Universal AC input / Full range (up to 305VAC)
Built-in active PFC function
OCP point adjustable through output cable or internal potential meter
Fully isolated plastic case IP64 design for indoor or outdoor installations
Three in one dimming function (1~10Vdc or PWM signal or resistor)
Suitable for dry / damp locations
Output voltage and constant current level can be adjusted through internal positional meter
Part Number Voltage (max) Current (amps) Power (watts)
HLN-80H-12B 12V 5A 60W
HLN-80H-15B 15V 5A 75W
HLN-80H-20B 20V 4A 80W
HLN-80H-24B 24V 3.4A 82W
HLN-80H-30B 30V 3A 81W
HLN-80H-36B 36V 2.3A 83W
HLN-80H-42B 42V 2A 82W
HLN-80H-48B 48V 2A 52W
HLN-80H-54B 54V 2A 81W
