LED lighting, Moving sign applications


Universal AC input/Full range (Up to 305VAC)
Built-in active PFC function
Protections: Short circuit/Over current/Over voltage/Over temp
OCP point adjustable through output cable or internal potentiometer
Class 2 power unit
Output voltage and constant current level can be adjusted
through internal potentiometer
Compliance to worldwide safety regulations for lighting

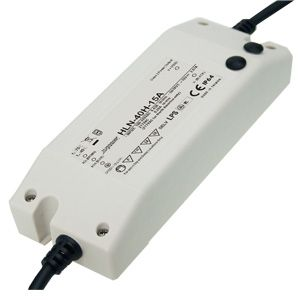

Part Number Voltage (max) Current (amps) Power (watts)
HLN-40H-12A 12V 3.33A 40W
HLN-40H-15A 15V 2.67A 40W
HLN-40H-20A 20V 2A 40W
HLN-40H-24A 24V 1.67A 40.1W
HLN-40H-30A 30V 1.34A 40.2W
HLN-40H-36A 36V 1.12A 40.3W
HLN-40H-42A 42V 0.96A 40.3W
HLN-40H-48A 48V 0.84A 40.3W
HLN-40H-54A 54V 0.75A 40.5W
