| Application LED high/low bay lighting Stage lighting Tunnel lighting LED spot lighting Outdoor architectural lighting systems |
||||
 |
Features Universal AC input range up to 305VAC Built in active PFC function High efficiency up to 93.5% Adjustable constant current level 1-10V, PWM signal or resistive dimming options Short circuit, over current, over voltage & over temperature protections Circular shape design with aluminium case IP67 rated for indoor and outdoor installations Suitable for dry, damp, wet locations |
|||
|
Part Number |
Voltage (max) | Current (amps) | Power (watts) | |
| HBG-240-24B | 24V | 10A |
240W |
|
|
HBG-240-36B |
36V | 6.7A | 240W | |
| HBG-240-48B | 48V | 5A |
240W |
|
|
HBG-240-60B |
60V | 4A |
240W |
|
Description

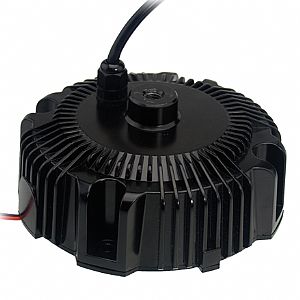

HBG-240B Series are a range of 240W circular LED power supplies, with 1P67 rating and three in one dimming function, designed specifically for use with high/low bay lighting fixtures. The HBG-240B range is fully potted within an aluminium enclosure, which can be assembled for a tight fit with the heat sink of the light fitting. The case can also provide excellent heat dissipation.
