Applications
LED lighting
Moving sign
LED indoor lighting
LED-based decorative lighting
LED electric display

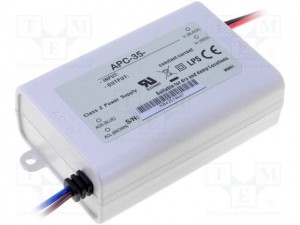

Apc 35



Features
Constant current mode power supply
Universal AC input/full range
Withstand 300VAC surge input for 5 seconds
Protections: Short circuit/Over voltage
Fully isolated plastic case
Small and compact size
Cooling by free air convection
IP30 design
100% full load burn-in test
Low cost/High reliability

Part Number Voltage (max) Current (amps) Power (watts)
APC-35-350 100V 0.35A 35W
APC-35-500 70V 0.5A 35W
APC-35-700 50V 0.7A 35W
APC-35-1050 33V 1.05A 34.7W

Description
The APC-35 is a 35W single output constant current switching LED power supply. Suitable for indoor LED lighting based applications, the APC-35 series is IP30 rated with standard features including up to date high frequency switching topology, 84% high efficiency and semi-potted for PCB protection. Built-in standard functions also include short circuit, overload and over voltage protection.
