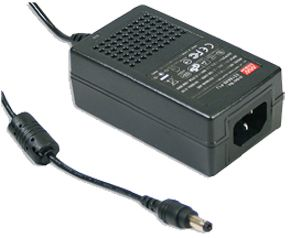

GS25A Series

 GS25A Series Features
Universal AC Input
No load power consumption <0.5W
Passes Energy star level IV requirements
Class I power
Full output 5~48V safety approval
Passes LPS for 9~48V output models
Short circuit, over load & over voltage protections
Fully enclosed plastic case
LED power indicator
Part Number Voltage Current Power
GS25A05-P1J 5V 4.0A 20W
GS25A07-P1J 7.5V 2.93A 22W
GS25A09-P1J 9V 2.77A 25W
GS25A12-P1J 12V 2.08A 25W
GS25A15-P1J 15V 1.66A 25W
GS25A18-P1J 18V 1.38A 25W
GS25A24-P1J 24V 1.04A 25W
GS25A28-P1J 28V 0.89A 25W
GS25A48-P1J 48V 0.52A 25W
Voltage range                                          90 ~ 264Vac 135 ~ 370Vdc
Input frequency                                        47~63Hz
AC current                                               0.7A / 100Vac
Inrush current                                          45A / 230Vac
Overload protection                                 110 ~ 150% rated output power
Overload Voltage Protection                   105 ~ 135% rated output voltage
Safety standards                                     UL2601-1, IEC60601-1, EN60601-1 Approved
Withstand voltage                                    I/P-O/P:3KVAC , I/P-FG:1.5KVAC
Connector Plug                                        P1J, 2.1 x 5.5 x 11mm DescriptionTo fulfil the global trend of energy-saving and environment protection these 25W green mode adaptors comply with California Energy Commission (CEC) Level IV and Energy Star Program standards. The adaptors also bear global safety certificates. Featuring CEC Level IV compliant for 5~48V models, they are 90~264Vac full range input switchers with short circuit, overload, and over voltage protections. There are IEC320-C 8 and C14 AC inlet options that can be chosen to best suit your application.
