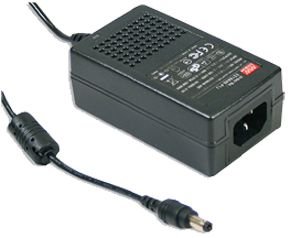

ES18A Series – 9~18W AC-DC Single Output Desktop Power Supply



Features Universal AC input / Full range 3 pole AC inlet IEC320-C14 Class power ( with earth pin) Full output 3~48V safety approval Protections: Short circuit / Overload / Over voltage Fully enclosed plastic case RCC control circuit and regulated LED indicator for power on Approvals: UL / CUL / TUV / CB 1 year warranty

Part Number	Voltage	Current	Power
ES18A03-P1J	3.3V	2.72A	9W
ES18A05-P1J	5V	3.0A	15W
ES18A07-P1J	7.5V	2.0A	15W
ES18A09-P1J	9V	2.0A	18W
ES18A12-P1J	12V	1.50A	18W
ES18A15-P1J	15V	1.20A	18W
ES18A18-P1J	18V	1.0A	18W
ES18A24-P1J	24V	0.75A	18W
ES18A28-P1J	28V	0.64A	18W
ES18A48-P1J	48V	0.38A	18W

Specification
Voltage range                                       90 ~ 264VAC 135 ~ 370VDC
Frequency range                                    47 ~ 63Hz
AC current                                              0.5A / 100VAC
Leakage current (max)                           0.75mA / 240VAC
Overload protection                                3.3V~9V: 110 ~ 150% rated output power
Safety standards                                    UL60950-1, CSA22.2, EN60950-1 Approved
Withstand voltage                                   I/P-O/P:3KVAC, I/P-FG:1.5KVAC
Connector Plug                                      Standard type P1J: 2.1mm x 5.5mm x 11mm
