Technology – Switchmode
Outputs – Single

MP3 players
Portable DVD players

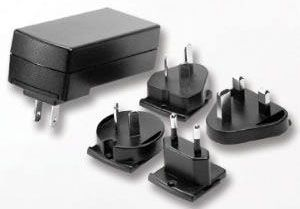

EA1030AR Series

Full range AC input
Outputs available: 21V~35V 1.42A max., 30W max.
Class II
CEC efficiency regulations compliance (optional)
RoHS compliance
Interchangeable AC plug
Over voltage, short circuit protection
Protection type: auto


Model No Voltage (max) Current (amps) Power (watts)
EA1030DR-22 22V 1.36A 30W
EA1030DR-24 24V 1.25A 30W
EA1030DR-26 26V 1.15A 30W
EA1030DR-30 30V 1.00A 30W
EA1030DR-34 34V 0.88A 30W

Input voltage                                        90 ~ 264Vac, full range
Input frequency                                   47~63Hz
Load regulation                                   +/- 5%
Operating temperature                      0°C ~ 40°C
Efficiency                                             80% Typical
Overload protection                           Yes
Short circuit protection                     Yes
Safety standards                                 UL60950-1, EN60950-1
Safety/EMC                                         UL/CUL, CE, TUV
MTBF                                                   30k Hours
DC Connector                                     2.1 x 5.5 x 11mm, center positive, hollow plug

EA1030DR Series is a single phase AC input, single output switching power supply. With interchangeable AC plugs this series is ideal for products designed for the world wide market. EA1030DR can provide 21V to 35V, 1.42A max and 30W max DC output with constant voltage source.
