Applications
Moving signs
Backlighting
LED-based decorative lighting
LED-based architectural lighting
LED stage and theatre lighting
LED electronic displays

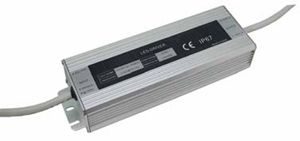

 PLNV-150SST



Features
High Efficiency (Up to 93%)
Active Power Factor Correction (Typically 0.99)
Constant Output Power
Lightning Protection
Waterproof (IP67)
All-Round Protection: OVP, OCP, SCP, OTP
Complies with UL8750 & EN61347-1 Safety Regulations

Part Number

 Voltage (max) Current (amps) Power (watts)

PLNV-100S012ST

 12V 8.33A

100W

PLNV-100S024ST

 24V 4.05A 100W
PLNV-100S036ST 36V 3A

100W

PLNV-100S042ST

 42V 2.25A 100W
PLNV-100S048ST 48V 2A

100W

PLNV-100S054ST

 54V 2A 100W
PLNV-100S081ST 81V 1.23A

100W
PLNV-100S105ST 105V 1A

100W

Description
The PLNV-100SxxxST Series operate from a 90 ~ 264 Vac input range. These units will provide up to 100W of output power and a maximum output current of 8.33A for 12 V output model. They are designed to be highly efficient and highly reliable. Features include lightning protection, over voltage protection, over current protection, short circuit protection and over temperature protection.
