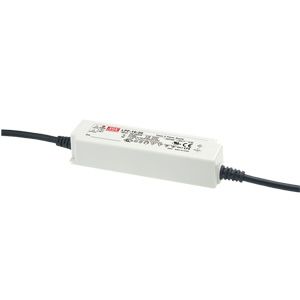

LPF-16 Series – 16W Single Output Switching LED Power Supply

Applications LED Lighting Moving Sign Decorative Lighting LED Office Lighting LED Electric Display LED Stage Lighting Wash-wall Lighting
		Features Universal AC input/Full range (Up to 305VAC) Protections: Short circuit/Over current/Over voltage/Over temperature Built-in active PFC function Cooling by free air convection Fully isolated plastic case with IP30 level Class II power unit, no FG IP67 rated (LPF-16-xxP) Compliance to worldwide safety regulations for lighting Suitable for dry/damp locations
Part Number	Voltage (max)		Current (amps)	Power (watts)
LPF-16-12	12V		1.34A	16.08W
LPF-16-15	15V		1.07A	16.05W
LPF-16-20	20V		0.8A	16W
LPF-16-24	24V		0.67A	16.08W
LPF-16-30	30V		0.54A	16.2W
LPF-16-36	36V		0.45A	16.2W
LPF-16-42	42V		0.39A	16.38W
LPF-16-48	48V		0.34A	16.32W
LPF-16-54	54V		0.3A	16.2W

Description
The LPF-16 series is a 16W unit designed to fulfil the lower wattage applications of LED lighting and decorative lighting. Enclosed in a plastic case with 94V-0 fire protection level the series can operate between -40~+70°C ambient temperature. Possessing up to 87% of high efficiency and protections including short circuit, overvoltage, overload and over temperature.
