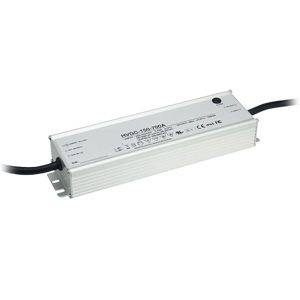

HVGC-150A Series – 150W Single Output LED Lighting Power Supply

Applications LED lighting Street Lighting
		Features Constant current design Wide input range 180~528 VAC Built-in active PFC function High efficiency up to 91% Protections: Short circuit, Over voltage, Over temperature Cooling by free air convection OCP point adjustable through output cable or internal potentiometer Compliance to worldwide safety regulations for lighting Suitable for dry/damp/wet locations
Part Number	Voltage (max)		Current (amps)	Power (watts)
HVGC-150-350A	42 – 428V		0.35A	149.8W
HVGC-150-500A	30 – 300V		0.5A	150W
HVGC-150-700A	21 – 215V		0.7A	150.5W
HVGC-150-1050A	15 – 143V		1.05A	150.15W
HVGC-150-1400A	12 – 107V		1.4A	149.8W

Description
The HVGC-150A is a 150W AC/DC high input voltage LED lighting power supply. The power supply DC current range can be adjusted from 50~100% and the output voltage + or – 10% by removing the rubber stopper on the cover. The HVGC-150A series are cooled by free air convection and operate from -40 to +70 degrees C therefore meeting the high ambient temperature requirements for closed systems.
