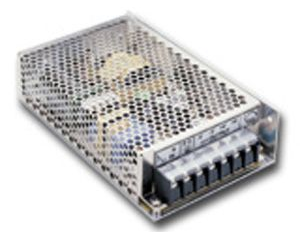

SPS-G100-D Series – 100W Dual Output AC/DC Enclosed Switch Mode Power Supply

Applications Automatic control systems Programmable logic controllers Test equipment
	Features Universal full range input Power on with LED indicator Built in EMI filter, low ripple noise Over voltage protection – Shutdown and latch off Over load & short circuit protections – Hiccup mode 100% full load burn-in test -20°C ~ +70°C operating temperature UL, cUL, TUV, CB, CE approved

Model No	Voltage (max)	Current (amps)	Power (watts)
SPS-G100-D1	5V	10A	88W
	12V	6A
SPS-G100-D2	5V	10A	90W
	24V	3A

Description
SPS-G100-D Series is a dual output enclosed power supply range designed with wide operating temperature ranges. These enclosed power supplies comply with EN61000-3-2 Class A and are approved to UL, cUL, CB and TUV EN60950-1:2006.
