SPS-1000P Features
Universal AC input with active power factor correction, P.F.>0.95
Inrush current limit soft start function
Over voltage, over load, short circuit protection
Over temperature protection
Output voltage ±10% adjustment
Output voltage remote sense & remote control ON/OFF
Power good signal output
Current sharing function, 3+1 up to 4KW
Forced air cooling by built in DC fan
Built in 5V/0.5A auxiliary output
1U low profile
UL, cUL, TUV, CB, CE standard
Model No Voltage (Max) Current (Amps) Power (Watts)
SPS-1000P-12 12V 63A 756W
SPS-1000P-24 24V 40A 960W
SPS-1000P-36 36V 28A 1000W
SPS-1000P-48 48V 21A 1008W

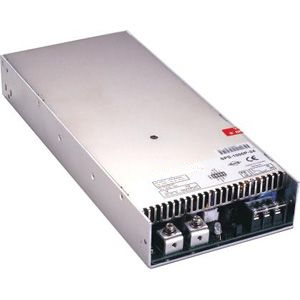

SPS-1000P Series are 1000W single output power supplies with high efficiency and wide operating temperatures from -20C to +70C. Standard features include remote control, remote sense, power good signal and over voltage, over load, short circuit and over temperature protections. SPS-1000P also has current sharing function for parallel use.
