Applications
Industrial automation
Moving sign
Electronic equipment
Instrumentation

SP-750 Series

Features
Universal AC input/Full range
AC input active surge current limiting
Built-in active PFC function, PF>0.95
Protections: Short circuit, overload, over voltage, over temperature
Forced air cooling by built-in DC ball bearing fan
High power density 5.48/inch
Built-in constant current limiting circuit
With power good and fail signal output
Built-in remote ON-OFF control
Built-in remote sense function
Model No Voltage (Max) Current (Amps) Power (Watts)
SP-750-5 5V 120A 600W
SP-750-12 12V 62.5A 750W
SP-750-15 15V 50A 750W
SP-750-24 24V 31.3A 751.2W
SP-750-27 27V 28A 751W
SP-750-48 48V 16A 754W

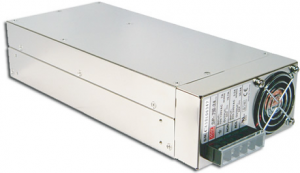

Description
The SP-750 series is a 750W AC-DC single output enclosed power supply with active PFC function. Protections including short circuit, overload, over voltage and over temperature. Forced air cooling by built-in Dc ball bearing fan.
