Industrial control systems
LED displays
Applications requiring a low profile installation
RSP-200 Features
Universal AC input/full range
Built-in active PFC function, PF>0.95
Protections: Short circuit/Overload/Over voltage/Over temperature
Cooling by free air convection
1U low profile 30mm
Optional conformal coating models (RSP-200-CC)
LED indicator for power on
Model No Voltage (Max) Current (Amps) Power (Watts)
RSP-200-2-5 2.5V 40A 100W
RSP-200-3-3 3.3V 40A 132W
RSP-200-4 4V 40A 160W
RSP-200-5 5V 40A 200W
RSP-200-7-5 7.5V 26.7A 200.25W
RSP-200-12 12V 16.7A 200.4W
RSP-200-13-5 13.5V 14.9A 201.15W
RSP-200-15 15V 13.4A 201W
RSP-200-24 24V 8.4A 201.6W
RSP-200-27 27V 7.5A 202.5W
RSP-200-36 36V 5.56A 200.16W
RSP-200-48 48V 4.2A 201.6W

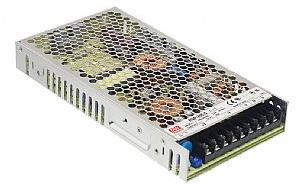

The RSP-200 is a 200W single output enclosed power supply with PFC function >0.95. With a 1U low profile of 30mm the series are suitable for applications requiring a low profile installation. Cooling by free air convection allows an operating temperature of -30~+70°C, other functions of the RSP-200 series include protection for short circuit, overload, over voltage and over temperature.
