SPD-A150P.png Features
Universal AC input voltage
Active PFC function, P.F.>0.95
Over load, over voltage, short circuit, over temperature protections
Green mode function, No load <1.5W
High efficiency up to 90%
100% full load burn-in test
Meets UL, CUL, TUV, CB, CE standards
Part Number Voltage Current Power
SPD-A150P-12 12V 11.3A 136W
SPD-A150P-15 15V 10A 150W
SPD-A150P-19 19V 7.9A 150W
SPD-A150P-24 24V 6.3A 151W
SPD-A150P-48 48V 3.2A 154W


Specification

Input Voltage                                          90V ~ 264Vac or 127V ~ 375Vdc Universal full range
Input Frequency                                     47 ~ 63 Hz
Leakage Current                                    <1.5mA@264Vac input
Rise Time                                              <40mS
Hold Up Time                                        >20mS@230V, full load condition
Input Current                                         <3.4A @115V , <1.7@230Vac input, full load condition
Over Temperature                                 Option, Over 95°C, the power supply will shutdown
Storage                                                  20% ~ 80% non condensing
Inrush Current                                        60A@115V, <120A@230Vac input. Cold start at 25℃ ambient
Short Circuit Protection                          Shutdown and auto recovers after fault condition has been removed



Description

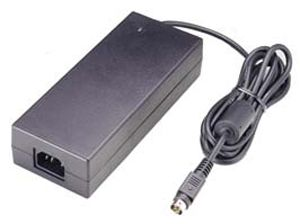

SPD-A150P is a 150W single output full range AC adapter with Active PFC, available in 12V, 15V, 19V, 24V & 48V models. With efficiency up to 90% and no load power consumption <1.5W, other standard features of SPD-A150P include over load, over voltage, over temperature and short circuit protections.
