GS40 Series.png Features
Universal AC input
No load power consumption <0.3W
Energy star(CEC) level IV compliant
Energy star(CEC) draft V2.0 level V
3 pole AC inlet IEC320-C14
Class I power (with earth pin)
Short circuit, over load, over voltage protections
LED indicator for power on
Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
Part Number Voltage Current Power
GS40A05-P1J 5V 5A 25W
GS40A07-P1J 7.5V 5.34A 40W
GS40A09-P1J 9V 4.45A 40W
GS40A12-P1J 12V 3.34A 40W
GS40A15-P1J 15V 2.67A 40W
GS40A18-P1J 18V 2.22A 40W
GS40A24-P1J 24V 1.67A 40W
GS40A48-P1J 48V 0.84A 40W


Specification

Input Voltage                                          90 ~ 264Vac 135 ~ 370Vdc
Input Frequency                                     47 ~ 63Hz
Input Current                                          1A/ 115Vac 0.5A/ 230Vac
Inrush Current                                        60A / 230Vac
Leakage Current                                    0.75mA / 240Vac
Set up, Rise Time                                  600ms, 30ms / 230Vac 600ms, 30ms / 115Vac at full load
Over Voltage Protection                        Shut down, re-power on to recover
Working Humidity                                  20% ~ 90% RH non-condensing
Temperature Coefficient                        ±0.03% /°C (0~50°C)
Safety Standards                                   UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943 approved



Description

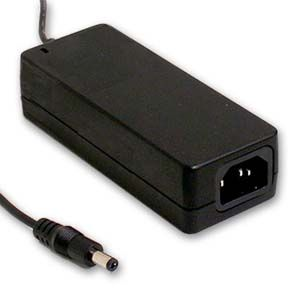

GS40 Series are a range of 40W AC/DC single output desktop green power adapters providing 5V-48V DC Outputs. With standard IEC320-C14 AC input inlet and compact size GS40 Series fulfils energy saving and environmental concerns as 92.1% of the unit can be effectively recovered, as per the WEEE regulation, and the unit complies with the latest Energy Star regulation and US California Energy Code (CEC level V). The energy saving elements of GS40 ensure the units have very low no load power consumption of <0.3W and up to 92.5% efficiency. These AC/DC adapters have also passed LPS tests and have acquired global safety certificates.
