GS280.png Features
Universal AC input/Full range
3 Pole AC inlet IEC320-C14
Built-in active PFC function, PF>0.95
Protections: Short circuit/Overload/Over voltage/Over temperature
Fully isolated plastic case
Approvals: UL/CUL/TUV/BSMI/CCC/CB/FCC/CE
Class I power (with earth pin)
LED indicator for power on
No load power consumption <0.5W
ErP step2 compliant
NR Can compliant
Meet EISA 2007 (Energy Independence and security act)
Part Number Voltage Current Power
GS280A12-R7B 12V 18.5A 222W
GS280A12-C4P 12V 18.5A 222W
GS280A15-R7B 15V 16A 240W
GS280A15-C4P 15V 16A 240W
GS280A20-C4P 20V 13A 260W
GS280A20-R7B 20V 13A 260W
GS280A24-R7B 24V 11.67A 280.08W
GS280A24-C4P 24V 11.67A 280.08W
GS280A48-C4P 48V 5.84A 280.32W
GS280A48-R7B 48V 5.84A 280.32W


Specification

Voltage                                                   90V ~ 264VAC 127 ~ 370VDC
Frequency                                              47 ~ 63 Hz
Power Factor                                          PF>0.95/230VAC PF>0.98/115VAC at full load
Inrush Current (Typ.)                              120A/230VAC
Leakage Current (Max.)                         1.5mA/240VAC
Storage Temp, Humidity                        -40°C ~ +85°C, 10 ~ 95% RH



Description

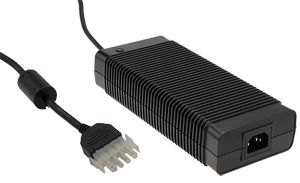

The GS280 is a 220x95x46mm AC-DC desktop power supply. Standard functions of the unit include built-in active PFC function, 3 pole AC inlet IEC320-C14 and protections including short circuit, overload, over voltage and over temperature. The GS280 series are suitable for applications including consumer electronics, point of sale systems, office equipment and commercial equipment.
