gs25b.png Features
Universal AC Input
No load power consumption <0.5W
Passes Energy star level IV for 5~48V outputs
Class II power
Full output 5~48V safety approval
Passes LPS for 9~48V output models
Short circuit, over load & over voltage protections
Fully enclosed plastic case
LED power indicator
Part Number Voltage Current Power
GS25B05-P1J 5V 4.0A 20W
GS25B07-P1J 8V 3A 22W
GS25B09-P1J 9V 3A 25W
GS25B12-P1J 12V 2.08A 25W
GS25B15-P1J 15V 2A 25W
GS25B18-P1J 18V 1.38A 25W
GS25B24-P1J 24V 1.04A 25W
GS25B28-P1J 28V 0.89A 25W
GS25B48-P1J 48V 0.52A 25W
Voltage range                                        90 ~ 264Vac 135 ~ 370Vdc
Input frequency                                      47~63Hz
AC current                                             0.7A / 100Vac
Inrush current                                        45A / 230Vac
Overload protection                               110 ~ 150% rated output power
Overload Voltage Protection                 105 ~ 135% rated output voltage
Safety standards                                   UL2601-1, IEC60601-1, EN60601-1 Approved
Withstand voltage                                 /P-O/P:3KVAC , I/P-FG:1.5KVAC
Connector Plug                                     P1J: 2.1 x 5.5 x 11mm, tuning fork type,                                                                                                                       centre positive

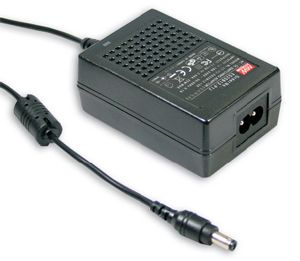

To fulfil the global trend of energy-saving and environment protection these 25W green mode adaptors comply with California Energy Commission (CEC) Level IV and Energy Star Program standards. The adaptors also bear global safety certificates. Featuring CEC Level IV compliant for 5~48V models, they are 90~264Vac full range input switchers with short circuit, overload, and over voltage protections. There are IEC320-C 8 and C14 AC inlet options that can be chosen to best suit your application.
