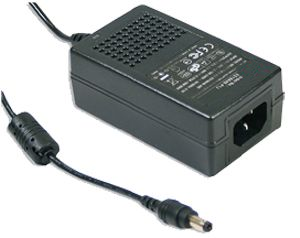

GS18A Series.png Features

Universal AC Input
No load power consumption <0.5W
Passes Energy star level IV for 5~48V outputs
Class II power
Full output 3~48V safety approval
Passes LPS for 9~48V output models
Short circuit, over load & over voltage protections
Fully enclosed plastic case
LED power indicator
Part Number Voltage Current Power
GS18B03-P1J 3.3V 3.0A 10W
GS18B05-P1J 5V 3.0A 15W
GS18B07-P1J 7.5V 2.0A 15W
GS18B09-P1J 9V 2.0A 18W
GS18B12-P1J 12V 1.50A 18W
GS18B15-P1J 15V 1.20A 18W
GS18B18-P1J 18V 1.0A 18W
GS18B24-P1J 24V 0.75A 18W
GS18B28-P1J 28V 0.64A 18W
GS18B48-P1J 48V 0.375A 18W
Specification

Input Voltage                                           90 ~ 264Vac 135 ~ 370Vdc
Frequency Range                                   47 ~ 63Hz
AC Current                                              0.5A / 100Vac
Inrush Current                                         45A / 230Vac
Leakage Current                                     0.25mA / 240Vac
Over Load Protection                             110 ~ 150% rated output power
Over Voltage Protection                         105 ~ 135% rated output voltage
Temperature Coefficient                         ±0.03% /°C (0 ~ 50°C)
MTBF                                                      500Khrs min. MIL-HDBK-217F(25°C)
DC Cable                                                UL1185 6ft (4FT for 3.3 ~ 5V output)
DC Connector                                         P1J: 2.1 x 5.5 x 11mm, tuning fork type, centre positive
