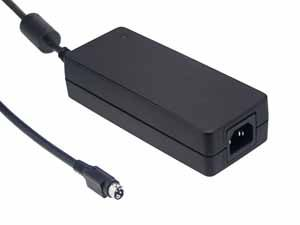

GS120.png Features
Universal AC input / Full range
3 pole AC inlet IEC320-C14
Protections: Short circuit / Overload / Over voltage / Over temperature
Fully enclosed plastic case
Approvals: UL / CUL / TUV / BSMI / CCC / CB / FCC / CE
Class power ( with earth pin)
LED indicator for power on
No load power consumption<0.5W
ErP step2 compliant
ENERGY STAR compliant
Meet EISA 2007(Energy Independence and Security Act

Part Number Voltage Current Power
GS120A12-R7B 12V 8.5A 102W
GS120A15-R7B 15V 7A 105W
GS120A20-R7B 20V 6A 120W
GS120A24-R7B 24V 5A 120W
GS120A48-R7B 48V 2.5A 120W


Specifications

Setup, Rise Time                                      Note.6
Hold Up Time                                           (Typ.) 2000ms, 30ms / 230VAC
Voltage Range                                          85 – 264VAC
Frequency Range                                     47 – 63Hz
Inrush Current (max)                                70A / 230VAC
Leakage Current (Max).                           0.75mA / 240VAC
Overload                                                  105 ~ 160% rated output power
Working Temp                                         30 ~ +70 (Refer to output load derating curve)
Storage Temp Humidity                           -40 ~ +85 , 10 ~ 95% RH
Dimension                                               167*67*35mm (L*W*H)
