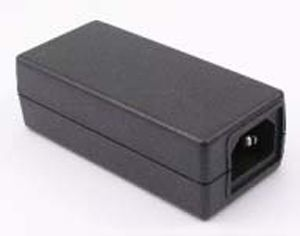

EA1036 Series.png Features
Universal AC input
IEC320 C14 AC inlet
Class 1 desktop power supply
Over voltage, short circuit protections
Fixed 2.1 x 5.5 x 9.5mm DC connector
UL, cUL, TUV, CE approvals
Part Number Voltage Current Power
EA10361 12V 3A 36W
EA1036D1 24V 2A 36W
Specification
Input Voltage                                          AC 90~264V
Input Frequency                                     47~63Hz
Line Regulation                                      1% Max
Load Regulation                                     +/- 5%
Over Voltage Protection                         Yes
Short circuit Protection                           Yes
Operating Temperature                          0~40°C
Storage Temperature                             -20°C~85°C
Dimension                                              98L x 45W x 31H mm
Standard Plug                                        2.1 x 5.5 x 9.5mm


Description

EA1036 Series are a range of 36W, single output, universal input desktop power supplies with IEC320 C14 AC inlets. These desktop power supplies meet CEC Level V and are approved to UL, CUL, TUV/GS, CE, FCC, BSMI, PSE, SEMKO, CCC, DOIR+C-TICK standards.
