EA10301.png Features
Universal AC input range
IEC 320 C14 AC Input
CEC Efficiency Regulations Compliance
Over Voltage, Short Circuit protection
Part Number Voltage Current Power
EA10301A-5 5V 3.5A 17.5W
EA10301B-9 9V 3A 30W
EA10301B-12 12V 2.5A 30W
EA10301C-15 15V 2A 30W
EA10301C-18 18V 2A 30W
EA10301D-24 24V 1.42A 30W
Voltage range                                          90 ~ 264Vac 135 ~ 370Vdc
Input frequency                                        47~63Hz
AC current                                               0.7A / 100Vac
Inrush current                                          <20A@115V , <40A@230V AC input, Cold start at 25℃ ambient
Overload protection                                 110 ~ 150% rated output power
Overload Voltage Protection                   105 ~ 135% rated output voltage
Safety standards                                     UL2601-1, IEC60601-1, EN60601-1 Approved
                                                                Withstand voltage /P-O/P:3KVAC , I/FG:1.5KVAC
Connector Plug                                       P1J: 2.1 x 5.5 x 11mm, tuning fork type, centre positive

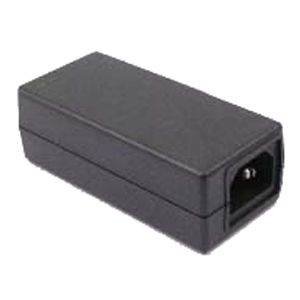

EA10301 Series are a range of universal input 30W single output desktop AC power supplies, with IEC320 C14 AC inlet, available as 9V, 12V, 15V, 18V & 24V output models.
