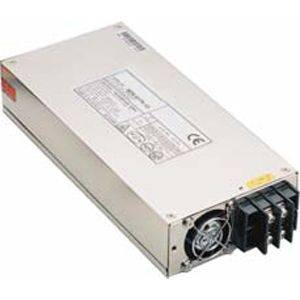

SDX-6170 Series

Dimensions 205 x 100 x 40.5 mm

Features
Input and output isolation
Soft start function, low inrush current
Over voltage protection
Over load & short circuit protection
Built-in long life ball bearing FAN
100% full load burn-in test
Meets Intel ATX 2.01 / ATX2.03 / ATX 12V / EPS
Meets LVD standard
CB, CE approved

Model No

Voltage

Load

Power (watts)

Efficiency

SDX-6170-12

5V

18A

170W

70mV



3.3V

10A



70mV



12V

10A



150mV



-5V

0.5A



100mV



-12V

0.8A



200mV



5Vsb

2.0A



100mV

Specification
Input Voltage                                                     10V ~18V DC (Typical 12V)
Input Current                                                     <24.7A@12VDC full load condition
Input Protection                                                 Fuse, 30A/250V
Efficiency                                                           63%
Over Voltage Protection                                    Shutdown and latch off, recover after re-start up
Over Load Protection                                        Over 105%~ 180% max load or short circuit acted
Rise Time                                                          <100mS
Power Good Signal                                           Power on within 100 ~ 500mS, high level TTL signal release
PS-ON Signal                                                    P/S ON: PS-ON=Low or <0.8V, P/S OFF: PS-ON=Hi or >2V
Operating Temperature                                     -10°C ~ 70°C; De-rating: 45°C ~ 70°C: 2.5%/°C
Operating Humidity                                           20% ~ 85% RH
Storage Temperature, Humidity                        20°C ~ 85°C, 10% ~ 95% RH (non condensing)
Withstand Voltage                                             I/P-O/P:2.0KVAC, I/P-PE:1KVAC, 1 minute
Isolation Resistance                                          I/P-O/P, I/P-PE, >100MΩ/500VDC at 25℃/ 70% RH
Cooling                                                              Forced airflow cooling with DC fan
Safety Standards                                              IEC 60950-1 approved
EMC                                                                 EN 55022 Class B, FCC CFR 47 PART 15 Class B, CNS 13438 Class B,                                                                          EN 55024:EN 61000-4-2,3,4,6,8;ENV 50204
MTBF 128K hours
