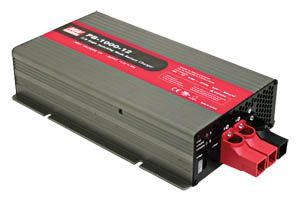

PB-1000 Series


Features
Controlled by microprocessor
2/8 stage charging selectable on output panel
Universal AC input / Full range
Built-in active PFC function PF>0.95
Protection: Reverse Polarity / Short circuit / Over voltage / Over temperature
Charger for lead-acid batteries
3 color LED loading indicator
Built in Remote On/Off control
2-Bank charger
FAN on/off control(Depends on charging current)

Part Number

Voltage

Current

Power

PB-1000-48

48V

17.4A

1000W

PB-1000-24

24V

35A

1000W

PB-1000-12

12V

60A

1000W


Description
An intelligent 1000W AC/DC battery charger for lead acid batteries with selectable 2 stage/8 stage charging characteristics. Up top 2 battery banks can be connected to PB-1000 at the same time. Features include built in temperature compensation circuit, PFC function and remote ON/OFF control, fan ON/OFF control, reverse polarity, short circuit, over-voltage, and over temperature protections.
