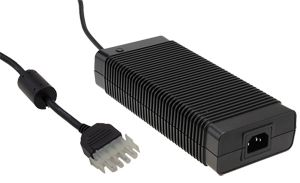

GC330 Series – 330W Single Output Battery Charger

Features 2 Stage charging characteristic Universal AC input/Full range Built-in active PFC function, PFC>0.95 3 Pole AC inlet IEC320-C14 Class I power (with earth pin) Cooling by free air convection Fully enclosed plastic case No load power consumption <1W 2 colour LED indicator for charging status

Part Number	Voltage	Efficiency
GC330A36-C4P	40.8V	93.5%
GC330A48-C4P	54.4V	93.5%

Description
The GC330 series is an AC/DC battery charger possessing very low “no load power consumption” and up to 93.5% of high efficiency. Offering a two stage charging curve (constant current and constant voltage) and can monitor the battery capacity by detecting the battery voltage. The device can quickly charge the battery at constant current mode in a low battery capacity statues and then, when the battery bank becomes full, the charger can automatically turn into constant voltage mode with slight charging current to avoided lifetime reduction caused by over charging.
