GE12 Series

Type
AC/DC
Technology – Switchmode
Outputs – Single
Applications
Consumer electronic products
Communication products
Office/business equipment

GE12 Series

 Features

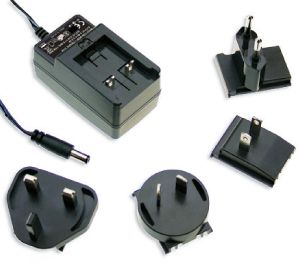

Interchangeable AC plugs (plug kit available separately)
Universal AC input
No load power consumption< 0.3W/230VAC
Meets energy star level V for full series
Meet EISA 2007 (Energy Independence and Security Act)
Class II power (without earth pin)
Short circuit, over load, over voltage protections
Fully enclosed plastic case
LED indicator for power on
Passes LPS
Approvals: UL / CUL / TUV / CCC / CB / FCC / CE / C-Tick
Model No Voltage (max) Current (amps) Power (watts)
GE12i05-P1J 5V 2.0A 10W
GE12i07-P1J 7.5V 1.33A 10W
GE12i09-P1J 9V 1.33A 12W
GE12i12-P1J 12V 1.0A 12W
GE12i15-P1J 15V 0.8A 12W
GE12i18-P1J 18V 0.83A 15W
GE12i24-P1J 24V 0.625A 15W

Specification
Input Voltage                                       90 ~ 264Vac 135 ~ 370Vdc
Input Frequency                                  47 ~ 63Hz
Input Current                                       0.4A/100Vac 0.25A/230Vac
Inrush Current                                     40A/100Vac 80A/230Vac, cold start
Leakage Current                                 0.25mA/240Vac
Working Humidity                                20% ~ 90% RH non-condensing
Withstand Voltage                               I/P-O/P:4242VDC
Isolation Resistance                            I/P-O/P:100M Ohms / 500VDC / 25/°C 70% RH
Safety Standards                                UL60950-1, CSA C22.2, TUV EN60950 -1, CCC GB4943
MTBF                                                  100Khrs min. MIL-HDBK-217F(25°C)
DC Plug & Cable                                 2.1 x 5.5 x 11mm turning fork type, center positive

Description
GE12 Series are 12W AC-DC wall-mounted green adapters that comply with Energy Star Level V and EISA 2007 requirements. With <0.3W of no load power consumption, efficiency up to 80% and interchangeable AC plugs these products meet the requirements for eco-design and reduce your inventory where plugtop adaptors are required for worldwide applications.
