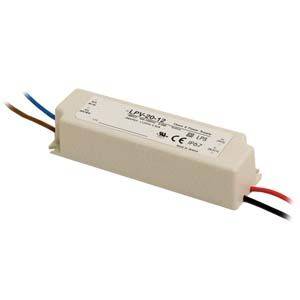

LPV-20 Series – 20W Single Output IP67 LED Lighting Power Supply

Applications Moving signs Backlighting LED-based decorative lighting LED-based architectural lighting LED stage and theatre lighting LED electronic displays
		Features Constant voltage mode power supply Universal AC input / Full range Epoxy encapsulated with IP67 level Withstand 300VAC surge input for 5 seconds Short circuit, over current, over voltage protections Fully isolated plastic case Cooling by free air convection Small and compact size UL1310 Class 2 power unit, passes LPS 100% full load burn-in test Low cost, high reliability
Part Number	Voltage (max)		Current (amps)	Power (watts)
LPV-20-5	5V		3A	15W
LPV-20-12	12V		2A	20W
LPV-20-15	15V		1.33A	20W
LPV-20-24	24V		1A	20.2W

Description
LPV-20 Series are 20W AC/DC enclosed, non PFC design, switching power supplies. LPV-20 models offer constant voltage mode and high IP rating to protect the electronic components from dust and moisture, making suitable for use in harsh locations. LPV-20 Series possesses high efficiency and can operate between -30°C ~ +70°C using only free air convection. To protect the unit from sudden high surge for unstable AC line, LPV-20 can withstand 300VAC input surge for 5 seconds. UL879, UL1310 Class 2, CAN/CSAC22.2 No. 223-M91, IP67 approved
