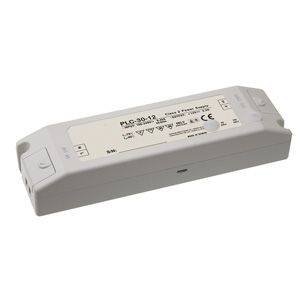

PLC-30 Series – 30W AC/DC Single Output Class 2 LED Lighting Power Supply

Applications Moving signs Backlighting LED-based decorative/architectural lighting LED stage and theatre lighting LED electronic displays
		Features Universal AC input / Full range Fully isolated plastic case with terminal block style I/O Built-in constant current limiting circuit Adjustable output voltage and current level Short circuit, overload, over voltage, over temperature protections Built-in active PFC function, comply with EN61000-3-2 class C (Pin>25W) Cooling by free air convection 100% full load burn-in test High reliability Suitable for LED lighting and moving sign applications Compliance to worldwide safety regulations for lighting
Part Number	Voltage (max)		Current (amps)	Power (watts)
PLC-30-9	9V		3.3A	30W
PLC-30-12	12V		2.5A	30W
PLC-30-15	15V		2A	30W
PLC-30-20	20V		2A	30W
PLC-30-24	24V		1.25A	30W
PLC-30-27	27V		1.12A	30.24W
PLC-30-36	36V		1A	30.24W
PLC-30-48	48V		1A	30.24W

Description
PLC-30 Series are 30W LED Lighting Power Supplies based on earlier PLN models but with a redesign to change the terminal block style of the Input/output connections to be more flexible when wiring and the addition of two access points, with rubber stoppers, to allow the output voltage and current to be adjusted without the need to remove the covers.
