Applications
LED Lighting, Moving sign applications

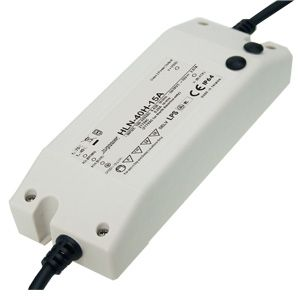

HLN-40H-B Series

Features
Universal AC input/Full range (Up to 305VAC)
Built-in active PFC function
Protections: Short circuit/Over current/Over voltage/Over Temp
OCP point adjustable through output cable or internal potentiometer
IP64 design for indoor and outdoor installation
Class 2 power unit
Constant current level adjustable through output cable with
1~10Vdc or 10V PWM signal or resistance
Compliance to worldwide safety regulations for lighting

Part Number Voltage (max) Current (amps) Power (watts)
HLN-40H-12B 12V 3.33A 40W
HLN-40H-15B 15V 2.67A 40W
HLN-40H-20B 20V 2A 40W
HLN-40H-24B 24V 1.67A 40.1W
HLN-40H-30B 30V 1.34A 40.2W
HLN-40H-36B 36V 1.12A 40.3W
HLN-40H-42B 42V 0.96A 40.3W
HLN-40H-48B 48V 0.84A 40.3W
HLN-40H-54B 54V 0.75A 40.5W
