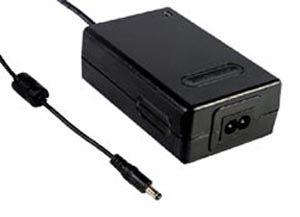

GC30B Series.png Features
Universal AC input
2 pole AC Inlet IEC320-C8
Class II power (without earth pin)
No load power consumption <1.0W
Constant current and voltage(CC,CV mode)
Suitable for continuous load
For high surge current equipment
Short circuit, over load, over voltage & over temperature protection
2 colours LED indication for charging status
Fully enclosed plastic case
High reliability
Part Number Voltage Current Power
GC30B-0P1J 4.2V 4A 17W
GC30B-1P1J 6V 4A 22.38W
GC30B-11P1J 7.2V 3A 22W
GC30B-2P1J 8.4V 3A 25.2W
GC30B-4P1J 14.3V 2.09A 30W
GC30B-5P1J 17V 2A 27W
GC30B-6P1J 29V 1.04A 30W
Specification

Voltage range                                          90 ~ 264Vac 127 ~ 370Vdc
Input frequency                                       47~63Hz
AC current                                              1A / 100Vac
Inrush current                                         <20A@115V , <40A@230V AC input, Cold start at 25℃ ambient
Overload protection                                110 ~ 150% rated output power
Overload Voltage Protection                  105 ~ 135% rated output voltage
Safety standards                                    UL2601-1, IEC60601-1, EN60601-1 Approved
                                                               Withstand voltage /P-O/P:3KVAC , I/P-FG:1.5KVAC
Connector Plug                                      P1J: 2.1 x 5.5 x 11mm, tuning fork type, centre positive

Description

Universal AC input 30W lithium ion battery chargers designed with energy saving and the environment in mind, they also comply with global safety requirements and the 2002/95/EC RoHS requirements. No load power consumption <1W, dual colour LED, to indicate charging status, and built in short circuit, over load, over voltage and over temperature protections are the main features of this series. GC30 is especially suitable for charging lithium ion batteries in all kinds of end product and the peak current capability means it can be used for equipment that needs a high start up current.
